日本語 日本語Conveyor Roller Polymer Sprokcet Assembly
Middle-duty conveyor rollers are compatible with polymer sprockets. Plastic end caps, polymer bearing housing, polymer sprockets, and precision ball bearings make up its components. High performance polyamide sprockets are used as the driving element instead of standard steel ones, and as a result, the operating noise is relatively less.
Specifications
| tube out diameter | tube thickness | shaft diameter | sprocket model | material |
| Φ50 | 1.2/1.5 | Φ12/hex 11 | 08B11T/08B14T | nylon + PP |
| Φ60 | 1.2/1.5 | Φ12/hex 11 | 08B11T/08B14T | nylon + PP |
Notes: single-row or double-row sprocket assembly is aviable.
2D Drawing
Images

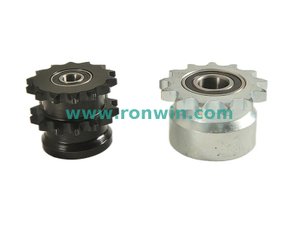

Single-row or Double-row are aviable.
Full Components.
Applications
Other Drive Elements: O-belt pulley,poly-v belt pulley, timing belt pulley.
Full range of roller plastic components.
