FC Series Flexible Expandable Skatewheels Conveyor
Gravity flexible expandable skatewheels conveyor is designed specially for handling of small and medium-size cartons/boxes. Complete steel structure is used for this conveyor. When laying out to according to complete expansion of single curve or composite curve, its structure remains integrated.
Conveying Surface
Steel wheels or plastic wheels are used for conveying surface. Width of conveying surface is 450mm, 500mm or 600mm.
Skate Wheels

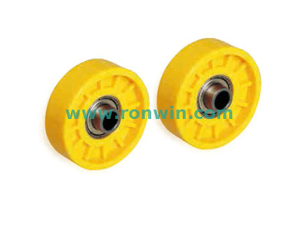

Yellow/blue/gray plastic skatewheels and steel skatewheels are provided with ball bearing.
Specifications of FC Flexible Expandable Skatewheels Conveyor
| Model No. | Units | Length | Width | Height | Load/unit | Rollers/unit | Qty of Legs | Weight |
|---|---|---|---|---|---|---|---|---|
| FC-48-450×1 | 1 | 435-1235 | 450 | 800-1000 | 60 | 9 | 2 | 33 |
| FC-48-450×2 | 2 | 870-2470 | 3 | 53 | ||||
| FC-48-450×3 | 3 | 1305-3705 | 4 | 72 | ||||
| FC-48-450×4 | 4 | 1740-4940 | 5 | 92 | ||||
| FC-48-450×5 | 5 | 2175-6175 | 6 | 112 | ||||
| FC-48-450×6 | 6 | 2610-7410 | 7 | 133 | ||||
| FC-48-500×1 | 1 | 435-1235 | 500 | 800-1000 | 60 | 9 | 2 | 35 |
| FC-48-500×2 | 2 | 870-2470 | 3 | 54 | ||||
| FC-48-500×3 | 3 | 1305-3705 | 4 | 77 | ||||
| FC-48-500×4 | 4 | 1740-4940 | 5 | 94 | ||||
| FC-48-500×5 | 5 | 2175-6175 | 6 | 113 | ||||
| FC-48-500×6 | 6 | 2610-7410 | 7 | 134 | ||||
| FC-48-600×1 | 1 | 435-1235 | 600 | 800-1000 | 60 | 9 | 2 | 38 |
| FC-48-600×2 | 2 | 870-2470 | 3 | 60 | ||||
| FC-48-600×3 | 3 | 1305-3705 | 4 | 82 | ||||
| FC-48-600×4 | 4 | 1740-4940 | 5 | 112 | ||||
| FC-48-600×5 | 5 | 2175-6175 | 6 | 124 | ||||
| FC-48-600×6 | 6 | 2610-7410 | 7 | 142 | ||||
Model No. FC-48-500×4 Example
FC-series
48-skate wheel diameter
500-transportation surface width
×4-four units
What is flexible expandable conveyor?
Flexible expandable conveyor is used to solve problems on transport in such complicated environment as warehousing, packing line and loading/ unloading etc, and can handle all sizes of boxed packages with flat bottom.
It has an advantage over fixed conveyors in flexibility and movability. It makes skillful use of movement, expansion and compaction so that floor space required can be reduced remarkably.
This conveyor is a complete steel structure, with flexibility. And it can be laid out at your request.
Multiple flexible expandable conveyors can be connected together and can be expanded optionally to any length required.
Load Capacity
When complete expanding, load capacity per unit ( between support legs) is no more than 100kg ( in the state of no impact load.)
Casters
4" heavy-duty swivel castors are used. On two ends of flexible expandable conveyor, castors with brake are provided. They stand firmly when handling packages.
Joint Hooks
In order to extend conveying length, multiple flexible expandable conveyors can be connected together by use of joint hooks so as to reach a longer length of conveyance.
Product Photograph
